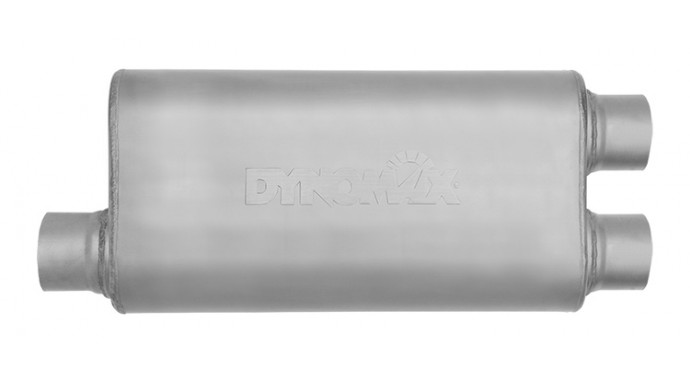

DynoMax® Performance Exhaust

Ultra Flo™ Welded - Offset / Offset (Opposite Sides)
17536
Ultra Flo™ Welded - Offset / Offset (Opposite Sides)
DynoMax® Ultra Flo™ Welded performance stainless steel mufflers feature 100-percent welded construction for lifelong durability. The unrestricted, straight-through design dyno proven to flow up to 2,000 SCFM and support up to 2,000 horsepower. Each muffler uses our exclusive Continuous Roving Fiberglass (CRF) Technology to absorb unwanted interior resonance while maintaining a deep performance tone. The 'Pure Unadulterated POWER' of DynoMax® Ultra Flo™ Welded mufflers are backed by a Limited Lifetime Warranty and exclusive 90-Day Performance & Sound Guarantee™. All Dynomax® Performance Exhaust Systems bolt on for easy installation. Your vehicle's complete exhaust can be quickly and easily customized with an emissions-legal premium performance system from Dynomax®.

Features & Benefits
  • Stainless steel construction for lifelong protection
  • 100% welded design for maximum durability
  • Straight through design ensures unrestricted exhaust flow and reduces back pressure
  • CRF Technology absorbs unwanted interior resonance while maintaining a deep performance tone
  • Dyno proven to flow up to 2,000 SCFM and support up to 2,000 horsepower.


MUFFLER SPECIFICATIONS

Muffler Type
Ultra Flo™ Welded
Muffler Body Height
4.5"
Muffler Body Length
20"
Muffler Body Width
9.75"
Muffler Body Material
Stainless Steel
Muffler Inlet Configuration
Offset
Muffler Inlet Connection Type
Pipe Connection
Muffler Inlet Diameter
3"
Muffler Inlet Diameter Designation
Inside Diameter
Muffler Outlet Configuration
Offset (Opposite Sides)
Muffler Outlet Connection Type
Pipe Connection
Muffler Outlet Diameter
3"
Muffler Outlet Diameter Designation
Inside Diameter
Muffler Overall Length
24"
Muffler Reversible
No
Muffler Shape
Oval
